MIL-DTL-46789D(AT)
Drive motor
Electric clutch
Cam
Switch
X-Y plotter
Constant torque
springs
Timer
Driver
Componet
Under Test
To X-Y plotter
Holding fixture
Torque sensor

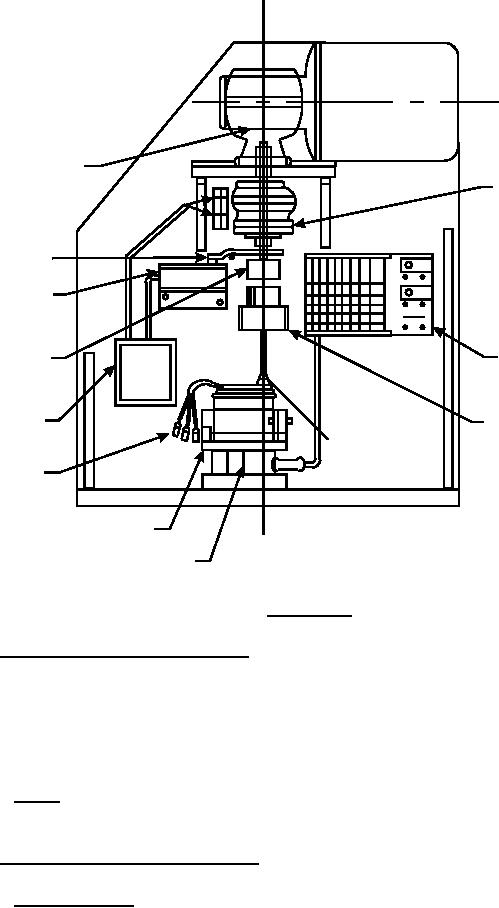

FIGURE 1. Test fixture.
4.5 Materials, design and construction. Conformance to 3.2 through 3.2.3 and 3.3, shall
be determined by inspection of contractor records providing proof or certification that design,
construction, processing, and materials conform to requirements. Applicable records shall
include drawing, specification, design data, receiving inspection records, processing and quality
control standards, vendor catalogs and certifications, industry standards, test reports, and rating
data.
4.5.1 Finish. To determine conformance to 3.2.4, the assembly shall be visually checked
for smoothness, uniformity, and free from wrinkling, orange peel and any irregularities.
4.6 Operating requirements verification.
4.6.1 Electrical output. To determine conformance to 3.4.1, the assembly shall be
mounted in the test fixture and connected to the resistive loads of table I and subject the rotor
11
