MIL-DTL-46725D(AT)
1.15P

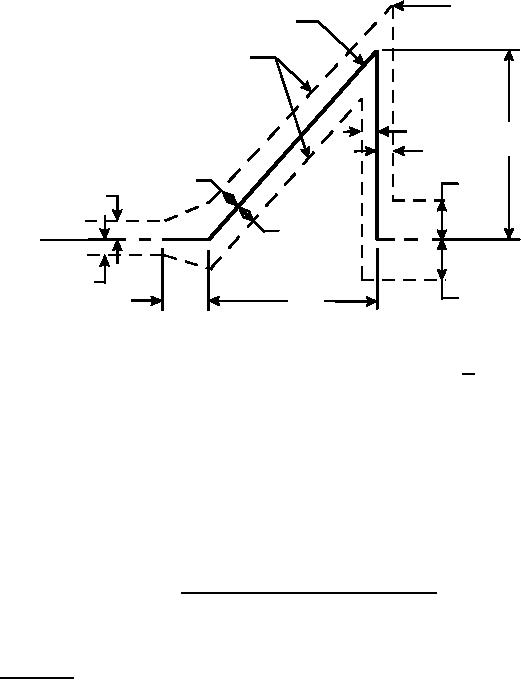

Ideal sawtooth pulse
Tolerance limits
0.07D
P
0.07D
0.15P
0.2P
0.05P
Ref. line
-0.15P
zero (g)
-0.05P
-0.2P
D
0.3D
Vi = PD/1
V = Vi + 10%
NOTE:
The oscillogram should include a time about 3D long with the pulse located approximately
in the center. The integration to determine velocity change should extend from 0.4D
before the pulse to 0.1D beyond the pulse. The acceleration amplitude of the ideal half
sine pulse is A and its duration is D. Any measured acceleration pulse which can be
contained between the broken line boundaries is a nominal half sine pulse of nominal
amplitude A and nominal duration D. The velocity-change associated with the measured
acceleration pulse is Vi.
FIGURE 1. Tolerances for half sine shock pulse.
5. PACKAGING
5.1 Packaging. For acquisition purposes, the packaging requirements shall be as specified
in the contract or order (see 6.2). When actual packaging of materiel is to be performed by DoD
personnel, these personnel need to contact the responsible packaging activity to ascertain requisite
packaging requirements. Packaging requirements are maintained by the Inventory Control Point's
packaging activity within the Military Department of Defense Agency, or within the Military
Department's System Command. Packaging data retrieval is available from the managing Military
Department's or Defense Agency's automated packaging files, CD-ROM products, or by
contacting the responsible packaging activity.
