A-A-52513 Bracket Assembly, Liquid Container, Five GallonThis CID covers a bracket assembly used for securing 5 gallon liquid containers to military vehicles. The assembly consists of a bracket and a strap assembly.

Pages 1 - 2 - 3 - 4




A-A-52513









Cross Reference

CID Part Number

Former MS part number

Drawing number

A52513-1

MS53052-1

6566675



NOTE:



1. Dimensions are in millimeters and are for engineering reference only.

2. Strap to be attached as shown during installation of bracket.

3. Unless otherwise specified, tolerances are ± 1 millimeter.

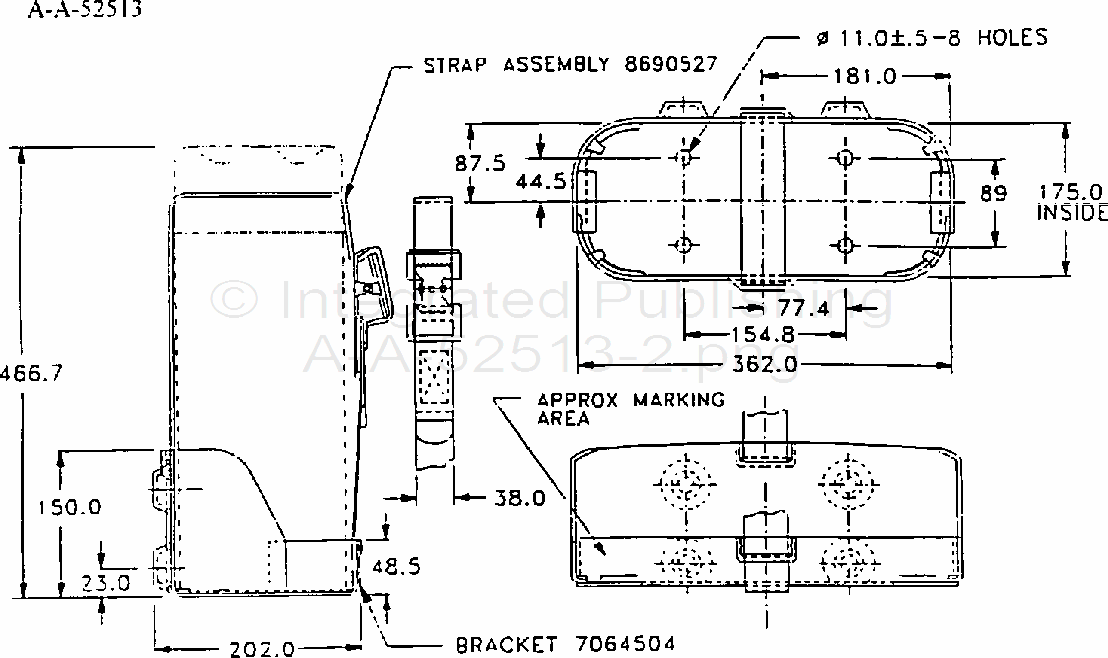

FIGURE 1. Bracket assembly.



2.2 Design and construction. Except as specified herein, the bracket assembly shall be designed and constructed in accordance with drawing number 6566675 and its referenced drawings 7064504 and 8690527 (see engineering parts list EPL6566675). Figure 1 shows the bracket assembly with the 5 gallon can in place.
